Laboratory glove box:

The main function is to remove the O2 and H2O and the organic gas.Widely used in ultra-pure environment without water, oxygen and dust. For example: lithium ion batteries and materials, semiconductors, super capacitors, special lamp, laser welding, brazing, material synthesis,OLED,MOCVD,etc. Also including biological applications, such as anaerobic culture, cell hypoxia culture, etc.

Optional Configuration:

Can choose vacuum pump, and also can be customized according to demand

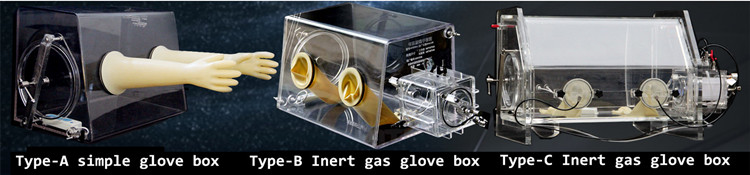

Different of acrylic glove box Type-A-B-C:

Type-A: This glove box is specifically for protection against radiation, isolation operation or dust-proof operation, and no transition box. It can only do simple experiments, thematerial thickness is 10mm.

 Type-B: As an anaerobic anhydrous glove box, the transition room can be vacuumed, and the operation room is replaced by inert gas. It has a transition box than type-a,and the material can be transmittedfrom the transition box during the experiment.The transition box can pumpvacuum and the vacuum degree up to -0.1mpa, The material thickness is 10mm.

Type-C: Both of operation box and transition box can be pumped vacuum andthan inject high purity gas after vacuum, limit vacuum degree can reach -0.1mpa..The internal water and oxygen content isgreatly reduced and the material thickness is 20mm.

Main Application:

1.In cooperation with scientific institution in the experiment of low-energy radioactive substance, it can be worked in the operation box when aseptic operation of microorganism inoculation and qualitative and quantitative analysis of chemicals and other airtight isolation operations.

2.Electronic materials, magnetic materials, equipment batteries, biological cultivation, food packaging, battery materials, etc.processingunder protective atmosphere.

3.The glove box is a laboratory facility that high purity inert gas is introduced in the box and cyclic filtration the active substances. Also known as vacuum glove box, inert gas protective box, etc.

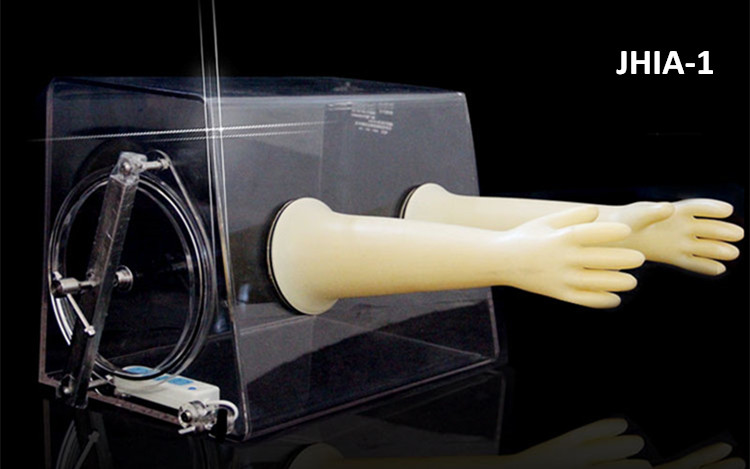

Acrylic glove box Type-A

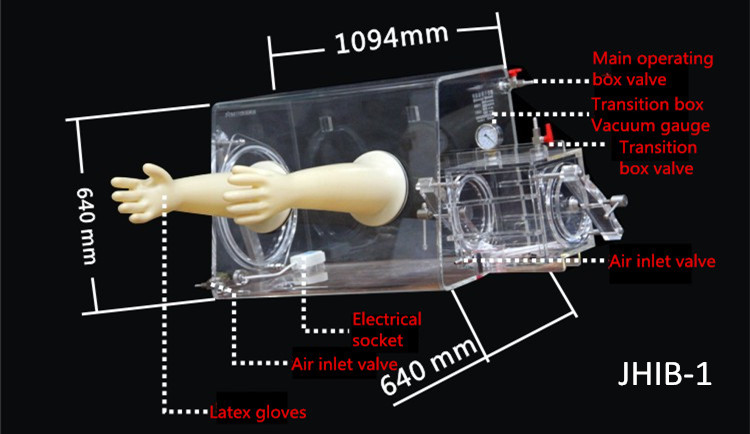

 Acrylic glove box-Type B with inert gas replacement

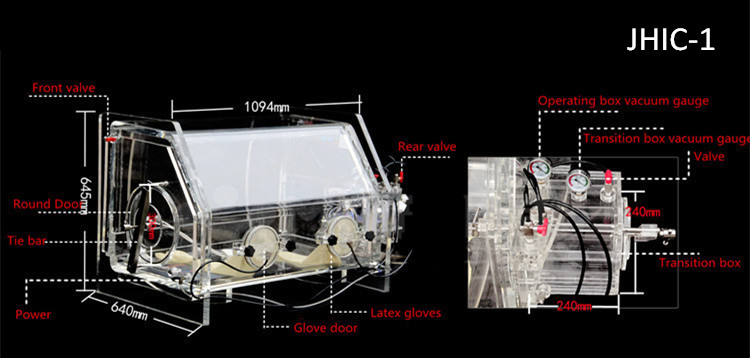

Acrylic glove box-Type C with Vacuum atmosphere Protection
